TK10 Aramid Linear PAZ PAR K13

TK10 Aramid Linear PAZ PAR K13

General Characteristics

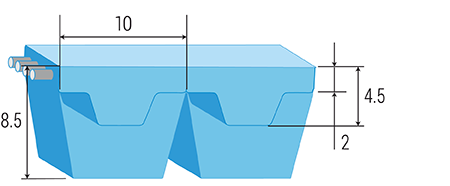

T Profile- 10mm Pitch Linear White TPU. Aramid Cords. Nylon on both sides. K13 molded notched guide

Print Data sheet
Request Sample
TK10 Aramid Linear PAZ PAR K13

Technical Information

Profile
T
Pitch
10.000 mm 0.39 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Aramid
Slit Lanes

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.30 mm/m

Special Features

PAZ - nylon fabric on teeth
PAR - nylon fabric on back
K13 - molded K13 notched guide
TK10 Aramid Linear PAZ PAR K13
TK10 Aramid Linear PAZ PAR K13

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
10
52
1425
712
5700
318
16
83
2612
1306
10450
583
25
130
4037
2018
16150
901
32
166
5225
2612
20900
1166
50
260
8075
4037
32300
1802
75
390
12112
6056
48450
2703
100
520
16150
8075
64600
3604
150
780
24225
12112
96900
5406

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
15
45.90
50
With Counter Flexion
25
77.73
120

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
5.18
5.00
4.85
4.70
4.61
4.14
3.68
3.16
2.61

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
15
45.90
47.75
52
16
49.08
50.93
55
18
55.45
57.30
61
19
58.63
60.48
65
20
61.81
63.66
68
22
68.18
70.03
74
24
74.54
76.39
84
26
80.91
82.76
87
27
84.09
85.94
90
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
28
87.28
89.13
93
30
93.64
95.49
100
32
100.01
101.86
106
34
106.38
108.23
112
36
112.74
114.59
119
40
125.47
127.32
131
44
138.21
140.06
144
48
150.94
152.79
157
